Adjustable Dual Thermostat and Humidity Control Switch

With Socket and Overload Protector, Can Be Connected to Two Fans, Surface Spraying, for Power Attic Ventilators

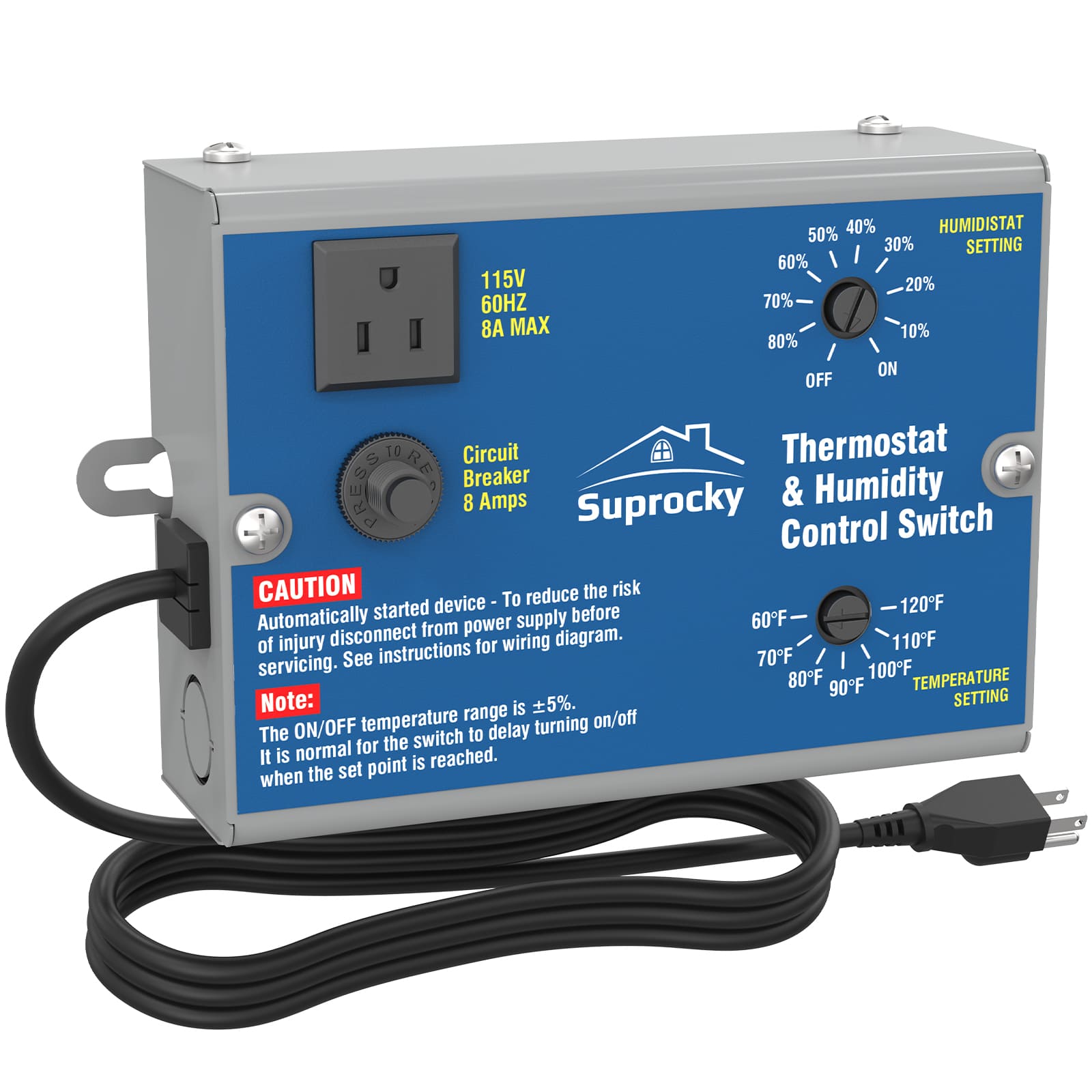

Adjustable Dual Thermostat and Humidity Control Switch RT10

Model: RT10

Maximum Limiting Current: 8Amp

Product Overview

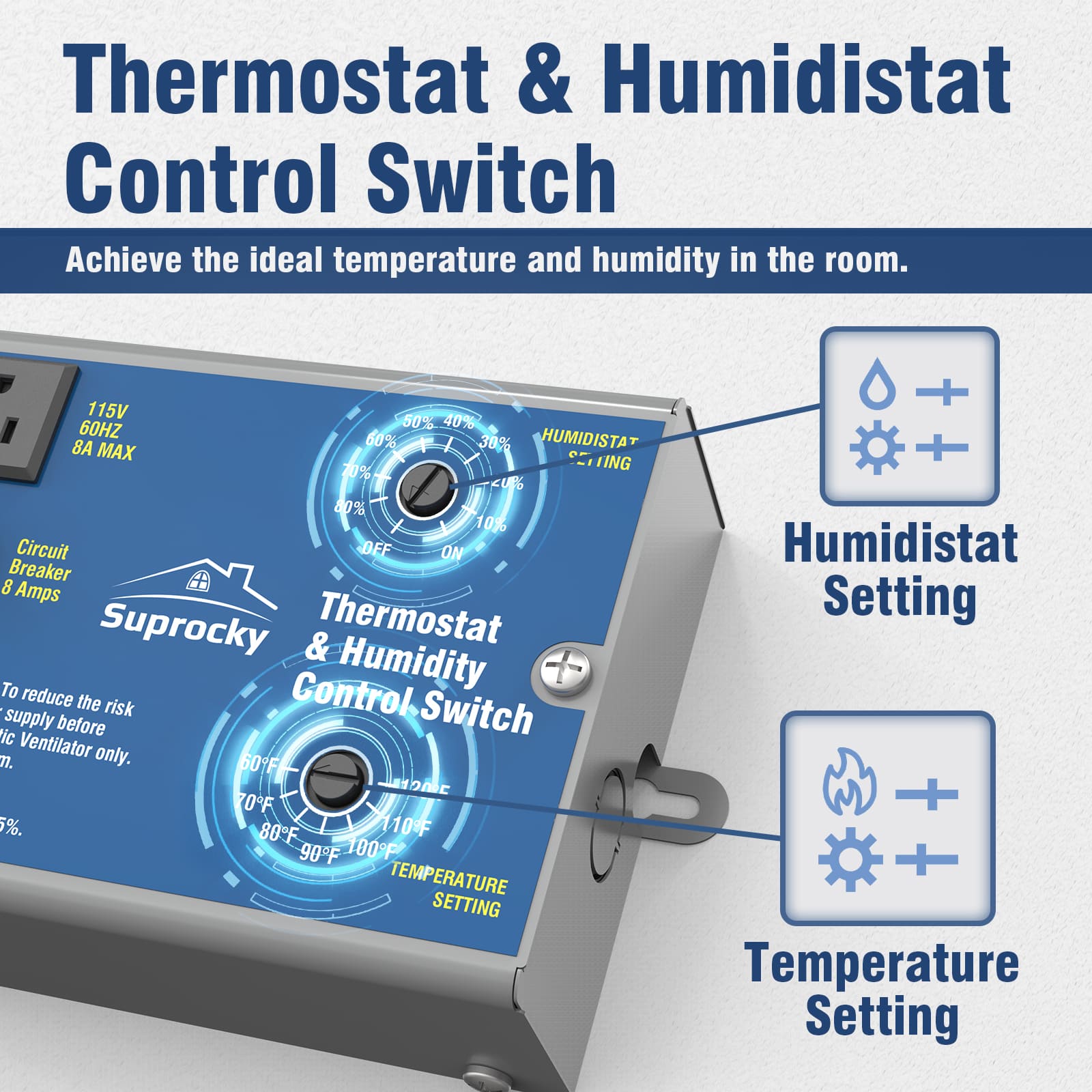

Adjustable Thermostat and Humidistat Control Box has 8 Amps, 115 Volts AC. Thermostat setting adjusts from 60 – 120 ℉ (normal settings are 85 – 110 ℉). Humidistat setting adjusts from 30 – 90% (normal settings are 60 – 70% depending on local humidity levels). If either setting is too low, fan will run continuously. If setting is too high, ventilation will be inadequate.

5 Year
Warranty

30Pints/Day
@AHAM

100 CFM
@0.0"

Adjustable Dual Thermostat and Humidity Control Switch Application
Adjustable Dual Thermostat and Humidity Control Switch

Suprocky advanced features:

Key Features
  • ✔DUAL HUMIDITY CONTROL: Adjustable Thermostat and Humidistat Control Box has 8 Amps, 115 Volts AC. Thermostat setting adjusts from 60 – 120 ℉ (normal settings are 85 – 110 ℉). Humidistat setting adjusts from 30 – 90% (normal settings are 60 – 70% depending on local humidity levels). If either setting is too low, fan will run continuously. If setting is too high, ventilation will be inadequate.

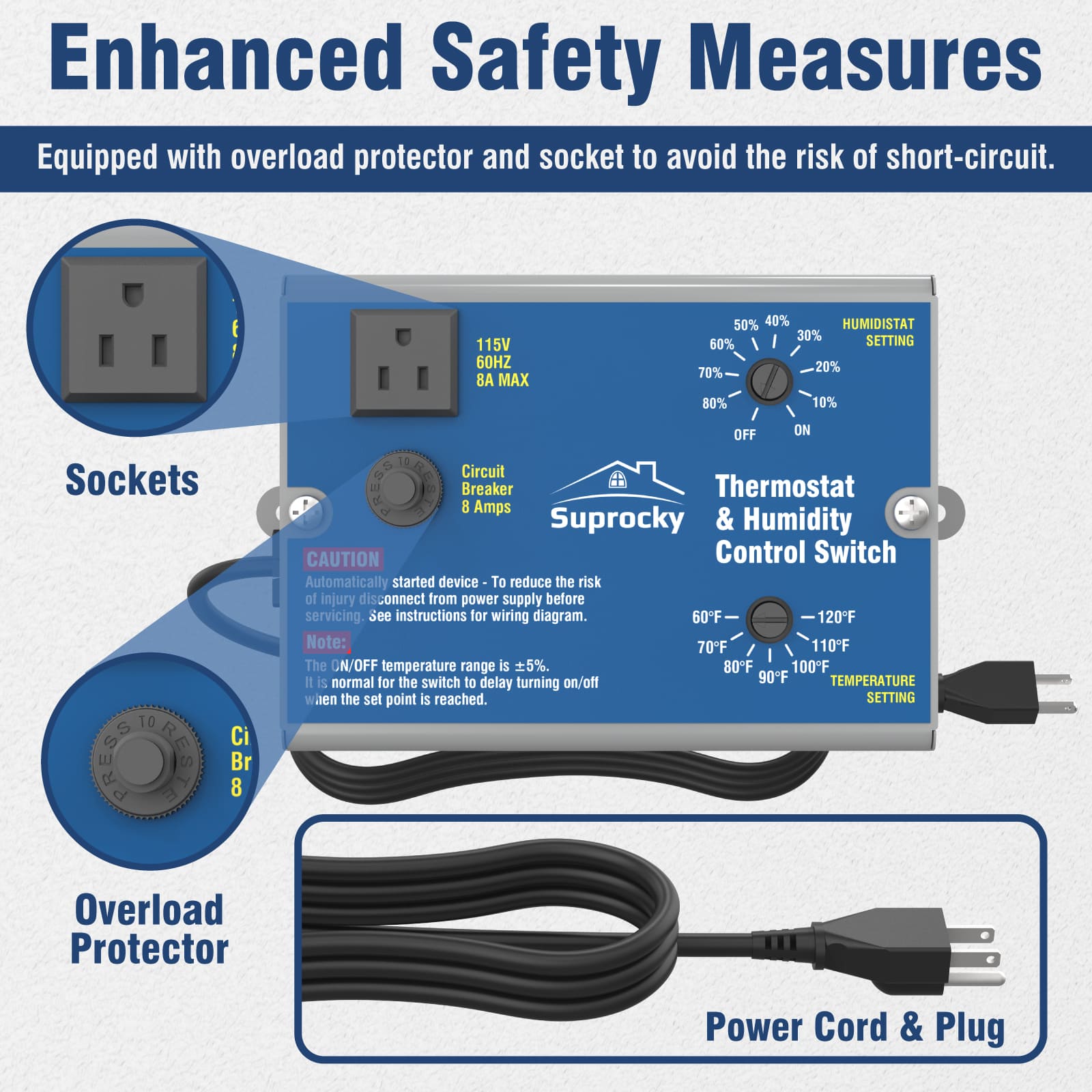

  • ✔SECURITY PROTECTION: This humidity and thermostat control box comes with an overload protector that protects circuits and equipment from damage caused by excessive current. It prevents overheating of wires, short circuits, and other conditions that could lead to a fire. The unit also has an outlet and a 59-inch power cord for easier use and better protection.

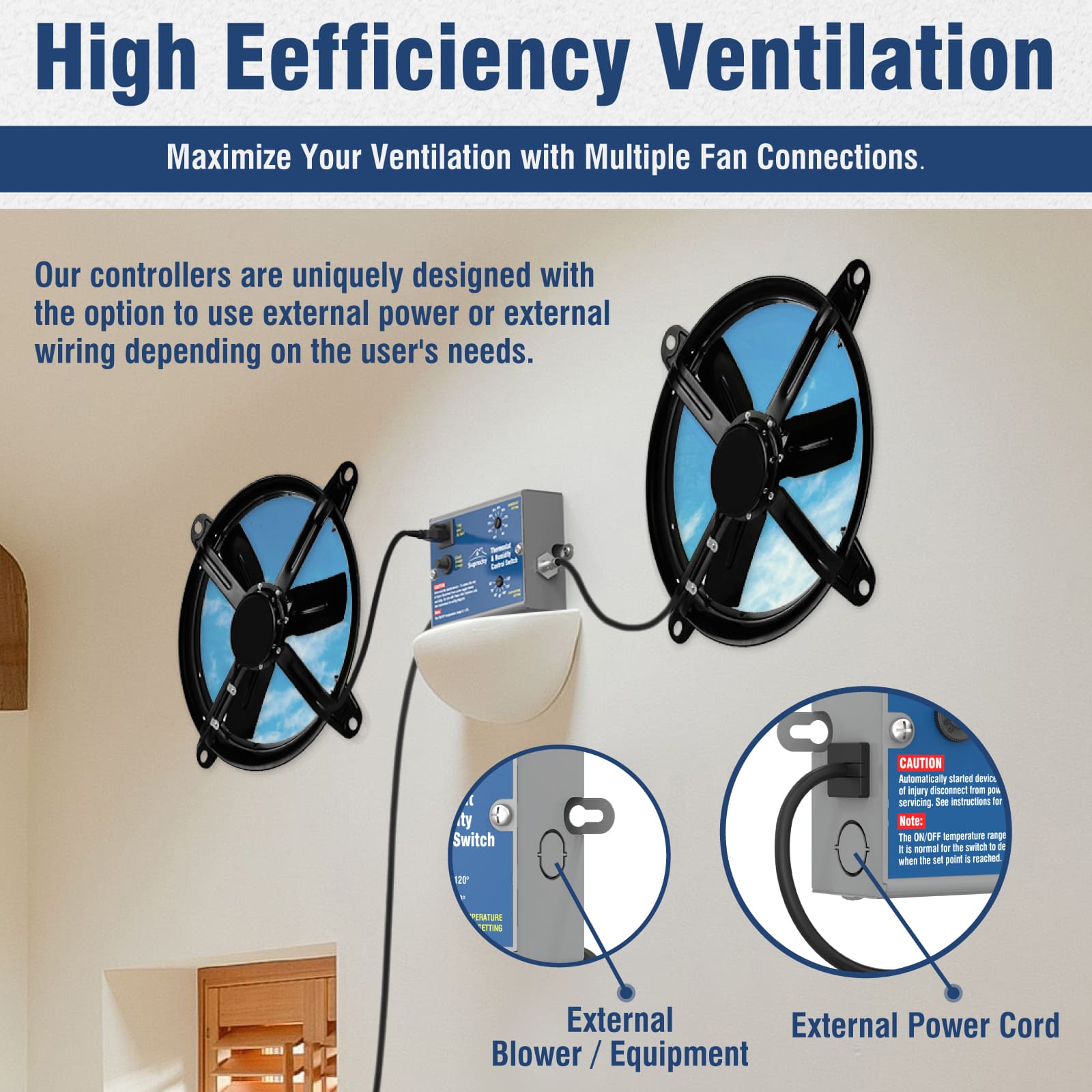

  • ✔MULTIPLE OPTIONS: In addition to the socket and power cord that comes with the device, there are also quick-connect terminals inside, so you can connect the fan cord and power cord by yourself. Users can use the product more easily and adapt to different working scenarios with more flexibility. This is the best solution to maintain the best conditions in any space.

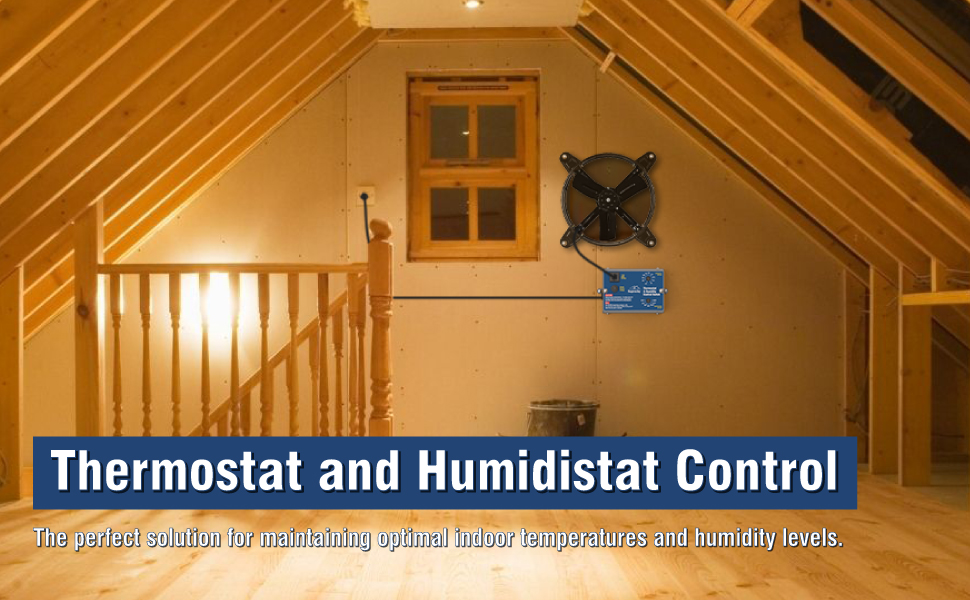

  • ✔EASY TO OPERATE: Suprocky dual temperature/humidity control allows users to limit fan operation based on selected temperature and humidity levels, eliminating the need to manually turn fans on and off. It removes excess heat from the attic in the summer and humidity in the winter. Bringing the inner and outer temperatures into balance, the year-round control removes excess humidity and protects roof components.

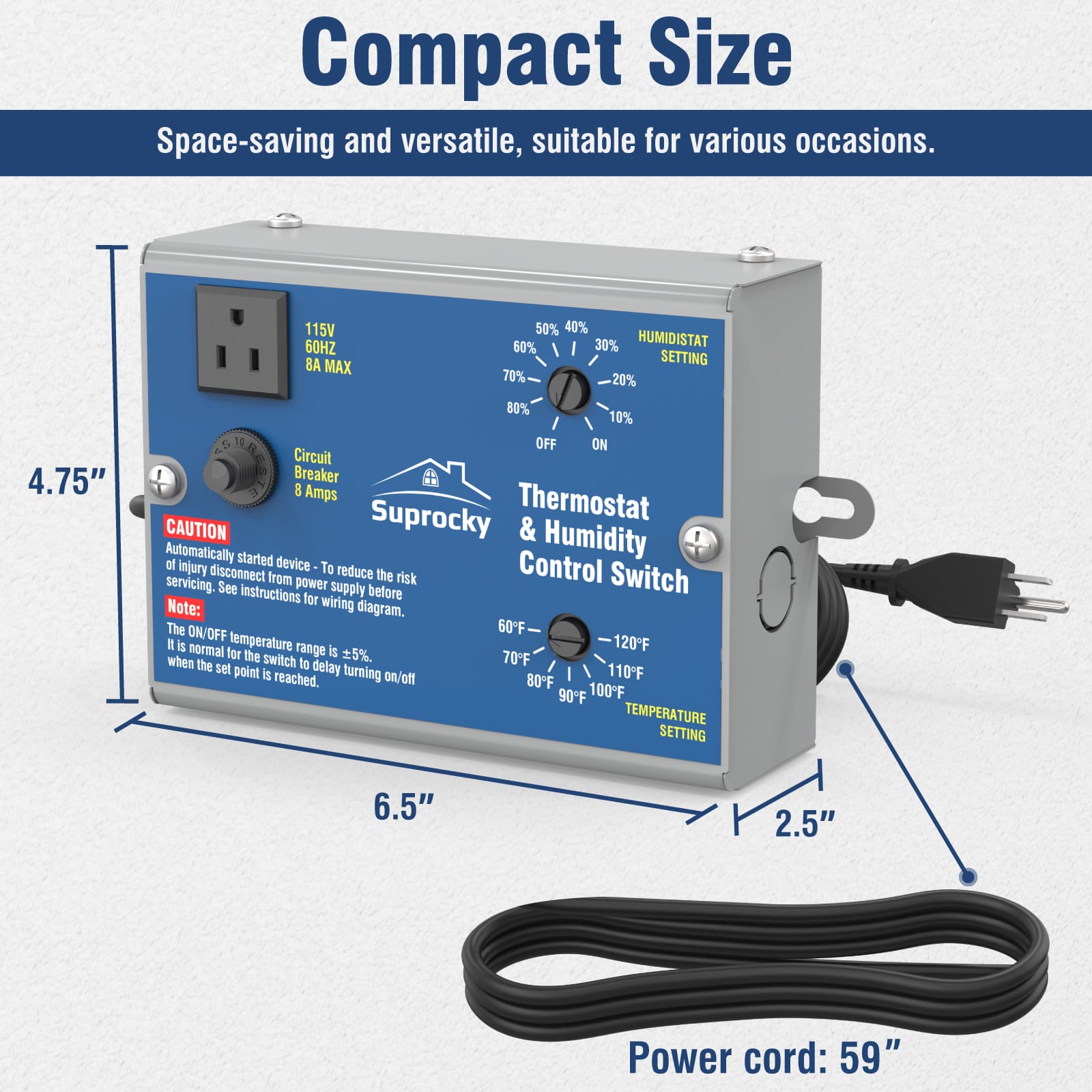

  • ✔ADDITIONAL: The thermostat measures 6.5″ x 4.75″ x 2.5″ and comes with a 5-year warranty. It can be used in attics, basements, garages, laundry rooms, kitchens, plant nurseries, collection rooms, wine cellars, and more.
Specifications
Dimension:6.5“x4.75″x2.5″5.3″x3.3″x2.5″
Contril Method:Temperature and HumidityTemperature
Temperature Range:60°F-120°F60°F-120°F
Humidity Range:10%-80%/
Power Cord Length:59″59″
Number of Connectable Fans:22
Supply Voltage:115V~60HZ115V~60HZ
Maximum Limiting Current:8 Amps8 Amps

【Warranty】

The thermostat measures 5.3″ x 3.3″ x 2.5″ with a 5-year warranty. It can be used in attics, basements, garages, laundry rooms, bakeries, breeding rooms, grow rooms, grow barns, collection rooms, wine cellars and many other applications.

How it works?

Adjustable Thermostat Control Applications

Adjustable Dual Thermostat and Humidity Control Switch
Adjustable Dual Thermostat and Humidity Control Switch Application
